CPE model library

Every supported model, manual and part system.

Dealership teams can move from model identification to diagrams, verified parts and account ordering in one workspace.

Raptor X 42"
Featured model

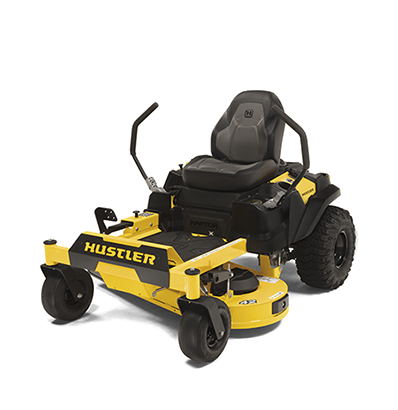

Raptor X 42"

Residential zero-turn / Kawasaki FR600V / 42" fabricated deck

Model number
944470
Product code
HTRTXS042KAWFR600VA
Manual coverage
18 systems
Cataloged parts
264

Dimensions & weight

Raptor X · 42-inch side discharge · Published series specifications

Overall length
68.8 in
Width · chute up
45.5 in
Overall height
40.8 in
Published weight
570 lb
Configurations & source

With optional catcher

  • Two-bag non-powered catcher · 5.4 bushelOverall length 91.4 in · Width 56.5 in

Catcher height and combined weight are not specified here. Confirm attachment compatibility for your model and serial number.

Chute-down width is not verified. The cutting width is not the overall mower width.

Specifications can vary by year, engine and accessories. Confirm the actual configuration and tight clearances before transport.

Hustler manufacturer specifications ↗Reviewed September 10, 2026
Raptor XD 54"
New manual added

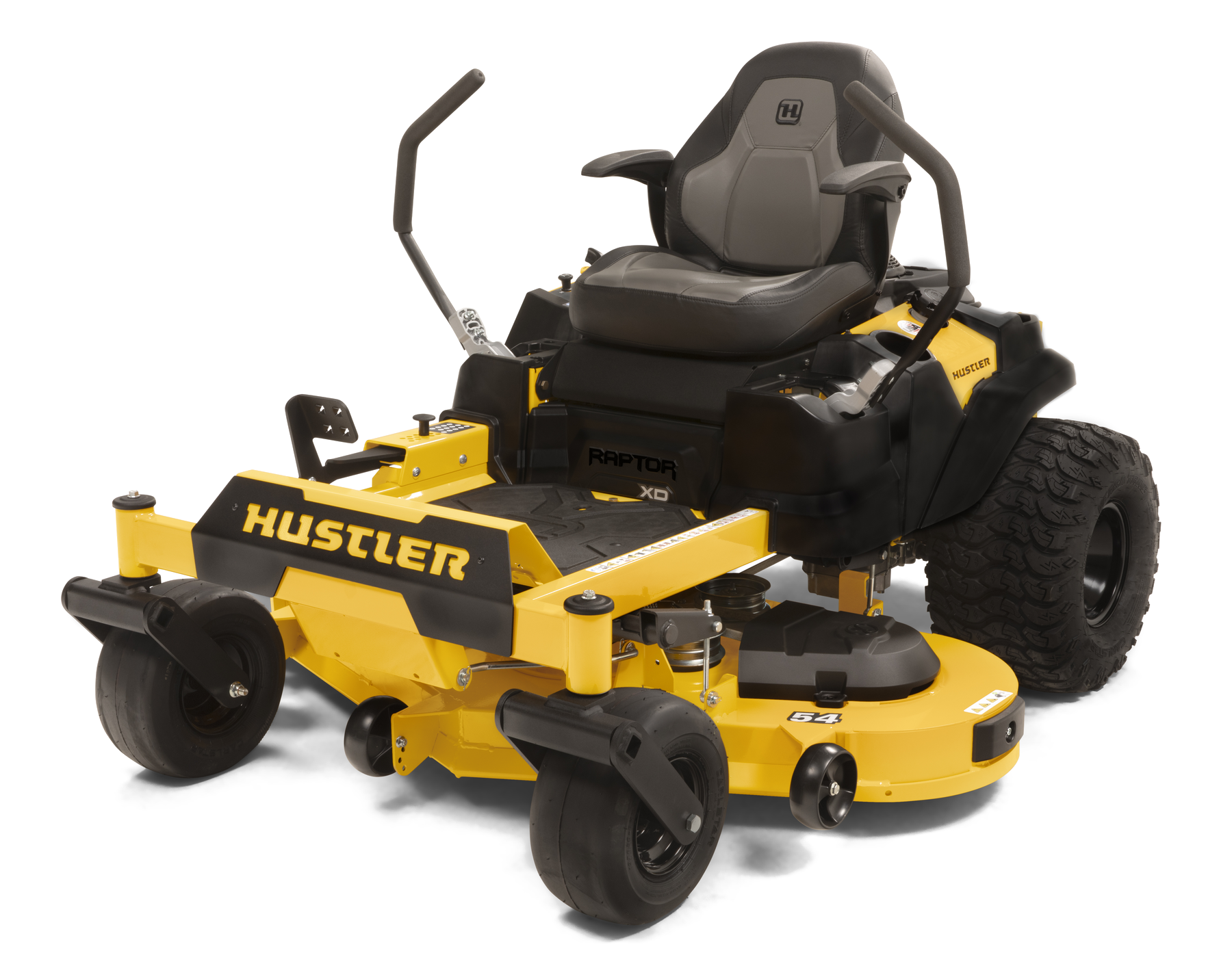

Raptor XD 54"

Residential zero-turn / Kawasaki FR730V / 54" fabricated deck

Model number
944546
Product code
HTRXDS054KAWFR730VA
Transmission
Tuff Torq TZ350
Manual coverage
18 systems / 258 parts

Dimensions & weight

Raptor XD · 54-inch side discharge · Published series specifications

Overall length
71.1 in
Width · chute up
58.5 in
Overall height
43.7 in
Published weight
673 lb
Configurations & source

With optional catcher

  • Two-bag non-powered catcher · 5.4 bushelOverall length 91.4 in · Width 69.5 in

Catcher height and combined weight are not specified here. Confirm attachment compatibility for your model and serial number.

Chute-down width is not verified. The cutting width is not the overall mower width.

Specifications can vary by year, engine and accessories. Confirm the actual configuration and tight clearances before transport.

Hustler manufacturer specifications ↗Reviewed September 10, 2026
View source manual
FasTrak 54"
Commercial manual added

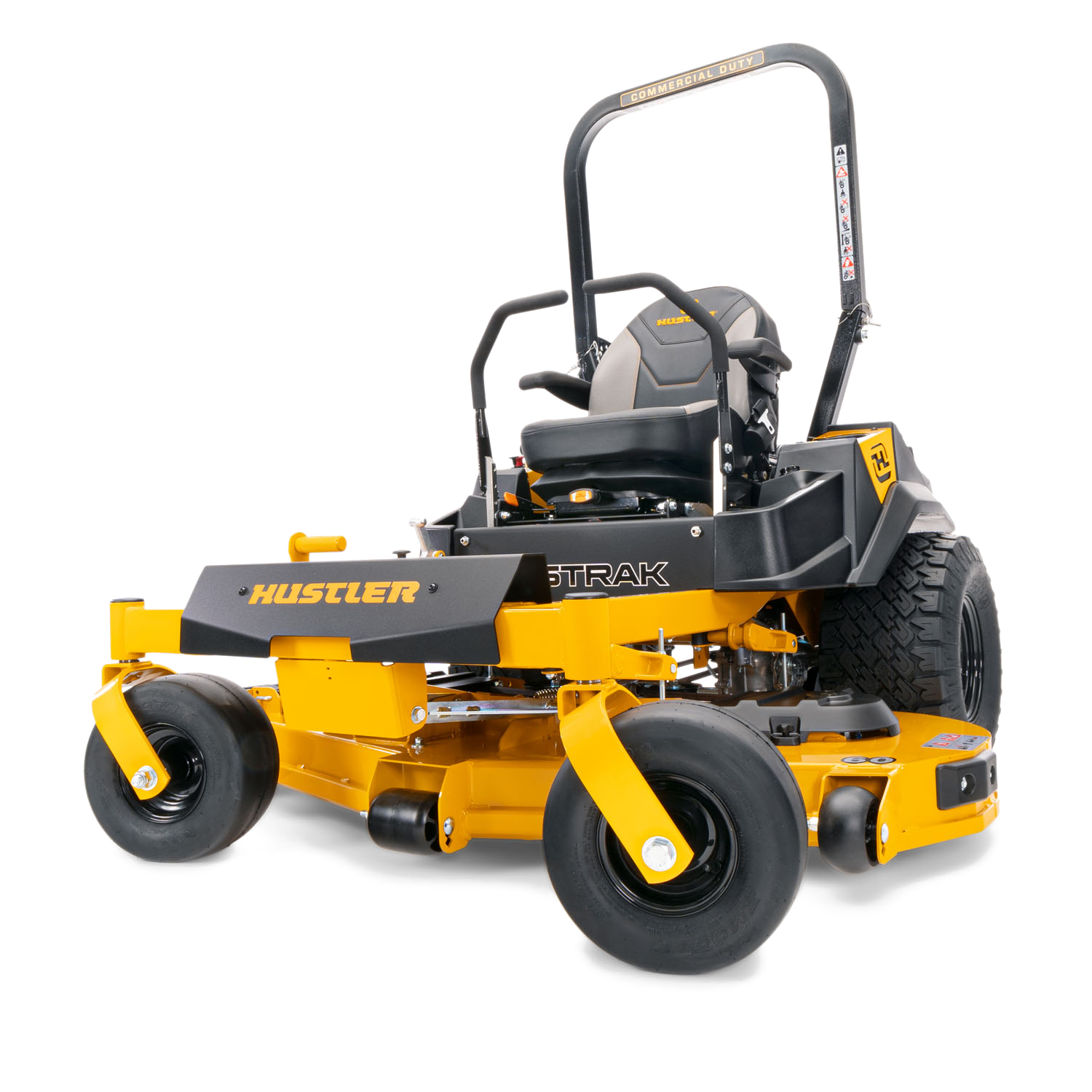

FasTrak 54"

Commercial zero-turn / Kawasaki FT691V / 54" fabricated deck

Model number
941732
Product code
HTFSTS054KAWFT691VA
Transmission
Hydro-Gear ZT-3200
Manual coverage
29 systems / 521 parts

Dimensions & weight

FasTrak · 54-inch side discharge · Published series specifications

Overall length
76.7 in
Width · chute up
55 in
Height · with ROPS raised
68.7 in
Published weight
925 lb
Configurations & source

The manufacturer also lists a height of 45.5 in, without explicitly identifying the folded-ROPS position. Confirm folded height separately.

With optional catcher

  • Two-bag powered catcher · 7.2 bushelOverall length 98 in · Width 63 in
  • Powered BAC-VAC · 8 bushelOverall length 88.75 in · Width 63 in

Catcher height and combined weight are not specified here. Confirm attachment compatibility for your model and serial number.

Chute-down width is not verified. The cutting width is not the overall mower width.

Specifications can vary by year, engine and accessories. Confirm the actual configuration and tight clearances before transport.

Hustler manufacturer specifications ↗Reviewed September 10, 2026
View source manual
Raptor X 48"
New Documoto manual added

Raptor X 48"

Residential zero-turn / Kawasaki FR651V / 48" fabricated deck

Model number
944488
Product code
HTRTXS048KAWFR651VA
Transmission
Dual Hydro-Gear EZT-2200
Manual coverage
18 systems / 260 parts

Dimensions & weight

Raptor X · 48-inch side discharge · Published series specifications

Overall length
Needs confirmation
Width · chute up
Needs confirmation
Overall height
Needs confirmation
Published weight
Needs confirmation

Dimensions need manufacturer confirmation: the published 48-inch row also lists a 54-inch cut and repeats the 54-inch footprint. Contact Cook’s with the model and serial number.

Configurations & source

Chute-down width is not verified. The cutting width is not the overall mower width.

Specifications can vary by year, engine and accessories. Confirm the actual configuration and tight clearances before transport.

Hustler manufacturer specifications ↗Reviewed September 10, 2026
View source manual
Raptor X 54"
New Documoto manual added

Raptor X 54"

Residential zero-turn / Kawasaki FR651V / 54" fabricated deck

Model number
944496
Product code
HTRTXS054KAWFR651VA
Transmission
Dual Hydro-Gear EZT-2200
Manual coverage
18 systems / 260 parts

Dimensions & weight

Raptor X · 54-inch side discharge · Published series specifications

Overall length
70.6 in
Width · chute up
58.6 in
Overall height
40.8 in
Published weight
625 lb
Configurations & source

With optional catcher

  • Two-bag non-powered catcher · 5.4 bushelOverall length 91.4 in · Width 69.5 in

Catcher height and combined weight are not specified here. Confirm attachment compatibility for your model and serial number.

Chute-down width is not verified. The cutting width is not the overall mower width.

Specifications can vary by year, engine and accessories. Confirm the actual configuration and tight clearances before transport.

Hustler manufacturer specifications ↗Reviewed September 10, 2026
View source manual
Raptor XD 60"
New Documoto manual added

Raptor XD 60"

Residential zero-turn / Kawasaki FR730V / 60" fabricated deck

Model number
944553
Product code
HTRXDS060KAWFR730VA
Transmission
Dual Tuff Torq TZ-350
Manual coverage
18 systems / 258 parts

Dimensions & weight

Raptor XD · 60-inch side discharge · Published series specifications

Overall length
71.1 in
Width · chute up
64.4 in
Overall height
43.7 in
Published weight
681 lb
Configurations & source

With optional catcher

  • Two-bag non-powered catcher · 5.4 bushelOverall length 91.4 in · Width 75.5 in

Catcher height and combined weight are not specified here. Confirm attachment compatibility for your model and serial number.

Chute-down width is not verified. The cutting width is not the overall mower width.

Specifications can vary by year, engine and accessories. Confirm the actual configuration and tight clearances before transport.

Hustler manufacturer specifications ↗Reviewed September 10, 2026
View source manual
Raptor XL 54"
New Documoto manual added

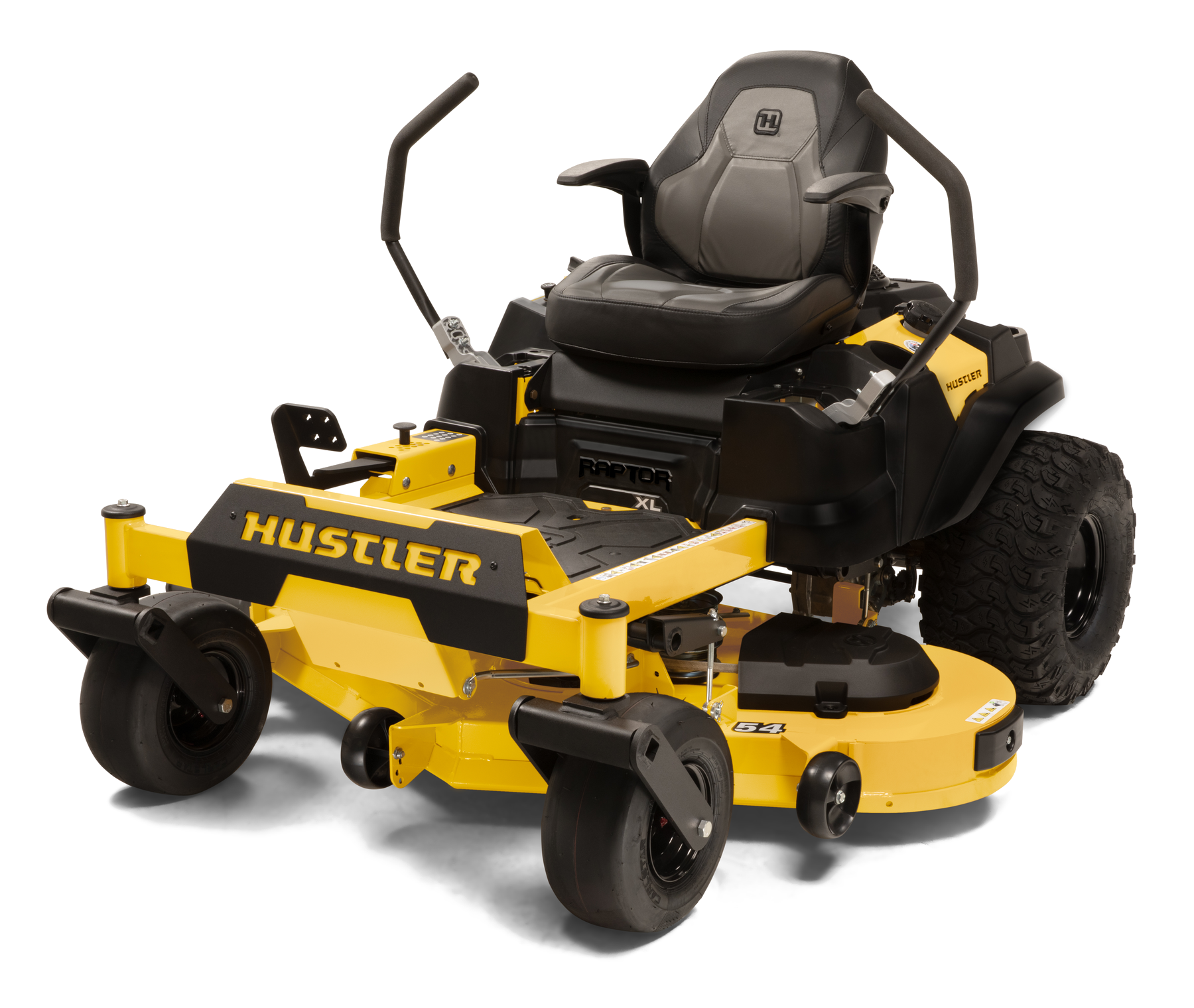

Raptor XL 54"

Residential zero-turn / Kawasaki FR691V / 54" fabricated deck

Model number
944520
Product code
HTRXLS054KAWFR691VA
Transmission
Dual hydrostatic drive
Manual coverage
18 systems / 264 parts

Dimensions & weight

Raptor XL · 54-inch side discharge · Published series specifications

Overall length
71.7 in
Width · chute up
58.6 in
Overall height
42.6 in
Published weight
655 lb
Configurations & source

With optional catcher

  • Two-bag non-powered catcher · 5.4 bushelOverall length 91.4 in · Width 69.5 in

Catcher height and combined weight are not specified here. Confirm attachment compatibility for your model and serial number.

Chute-down width is not verified. The cutting width is not the overall mower width.

Specifications can vary by year, engine and accessories. Confirm the actual configuration and tight clearances before transport.

Hustler manufacturer specifications ↗Reviewed September 10, 2026
View source manual
X-One 60"
New Documoto manual added

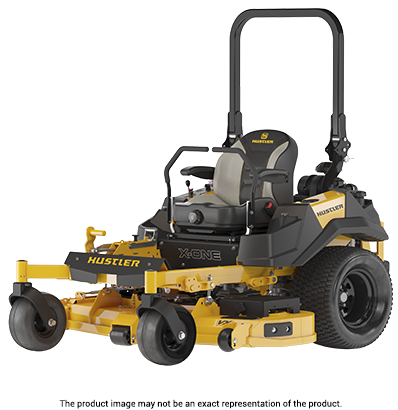

X-One 60"

Commercial zero-turn / Kawasaki FX850V / 60" fabricated deck

Model number
941856
Product code
HTXHGX060KAWFX850VA
Transmission
Hydro-Gear ZT-4400
Manual coverage
29 systems / 539 parts

Dimensions & weight

X-ONE · 60-inch side discharge · Published series specifications

Overall length
84.4 in
Width · chute up
61.6 in
Height · with ROPS raised
72.5 in
Published weight
1,290–1,395 lb
Configurations & source

The manufacturer also lists a height of 49 in, without explicitly identifying the folded-ROPS position. Confirm folded height separately.

With optional catcher

  • Three-bag powered catcher · 12 bushelOverall length 111.1 in · Width 70.9 in
  • Powered BAC-VAC · 10 bushelOverall length 108.3 in · Width 70.9 in

Catcher height and combined weight are not specified here. Confirm attachment compatibility for your model and serial number.

Chute-down width is not verified. The cutting width is not the overall mower width.

Specifications can vary by year, engine and accessories. Confirm the actual configuration and tight clearances before transport.

Hustler manufacturer specifications ↗Reviewed September 10, 2026
View source manual
Super Z 60"
New Documoto manual added

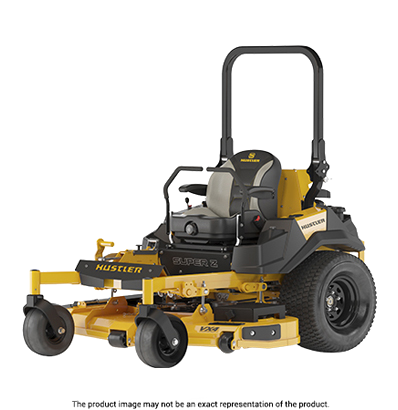

Super Z 60"

HyperDrive commercial zero-turn / Kawasaki FX1000V / 60" fabricated deck

Model number
942839
Product code
HTHSZV060KAWFX1000VA
Transmission
Hydro-Gear 21cc PY pumps / Parker TG motors
Manual coverage
34 systems / 515 parts

Dimensions & weight

Super Z · 60-inch side discharge · Published series specifications

Overall length
88 in
Width · chute up
66 in
Height · with ROPS raised
73.5 in
Published weight
1,553–1,637 lb
Configurations & source

The manufacturer also lists a height of 47.8 in, without explicitly identifying the folded-ROPS position. Confirm folded height separately.

With optional catcher

  • Three-bag powered catcher · 12 bushelOverall length 114.9 in · Width 70.9 in
  • Powered BAC-VAC · 10 bushelOverall length 108.4 in · Width 70.9 in

Catcher height and combined weight are not specified here. Confirm attachment compatibility for your model and serial number.

Chute-down width is not verified. The cutting width is not the overall mower width.

Specifications can vary by year, engine and accessories. Confirm the actual configuration and tight clearances before transport.

Hustler manufacturer specifications ↗Reviewed September 10, 2026
View source manual

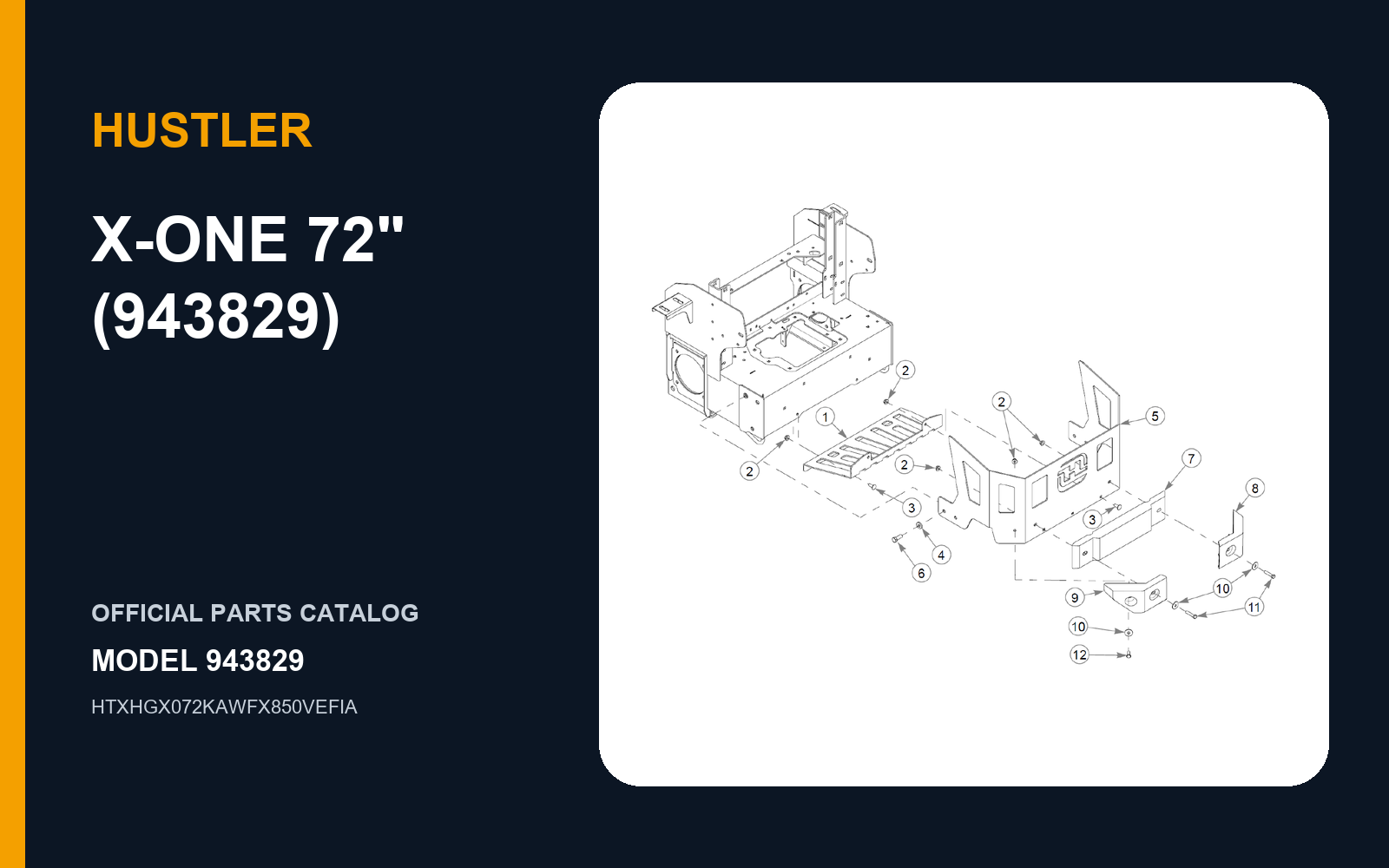

X-ONE 72" (943829)
New Documoto manual added

X-ONE 72" (943829)

Commercial zero-turn / Kawasaki FX850V EFI / 72" fabricated deck

Model number
943829
Product code
HTXHGX072KAWFX850VEFIA
Transmission
Hydro-Gear ZT-4400
Manual coverage
32 systems / 590 parts

Dimensions & weight

X-ONE · 72-inch side discharge · Published series specifications

Overall length
86.9 in
Width · chute up
73.6 in
Height · with ROPS raised
72.5 in
Published weight
1,405–1,425 lb

Catcher dimensions need manufacturer confirmation: the published catcher width is narrower than the base mower. Do not use that value for trailer sizing.

Configurations & source

The manufacturer also lists a height of 49 in, without explicitly identifying the folded-ROPS position. Confirm folded height separately.

Chute-down width is not verified. The cutting width is not the overall mower width.

Specifications can vary by year, engine and accessories. Confirm the actual configuration and tight clearances before transport.

Hustler manufacturer specifications ↗Reviewed September 10, 2026
View source manual
X-RIDE 60" (944868EX)
New Documoto manual added

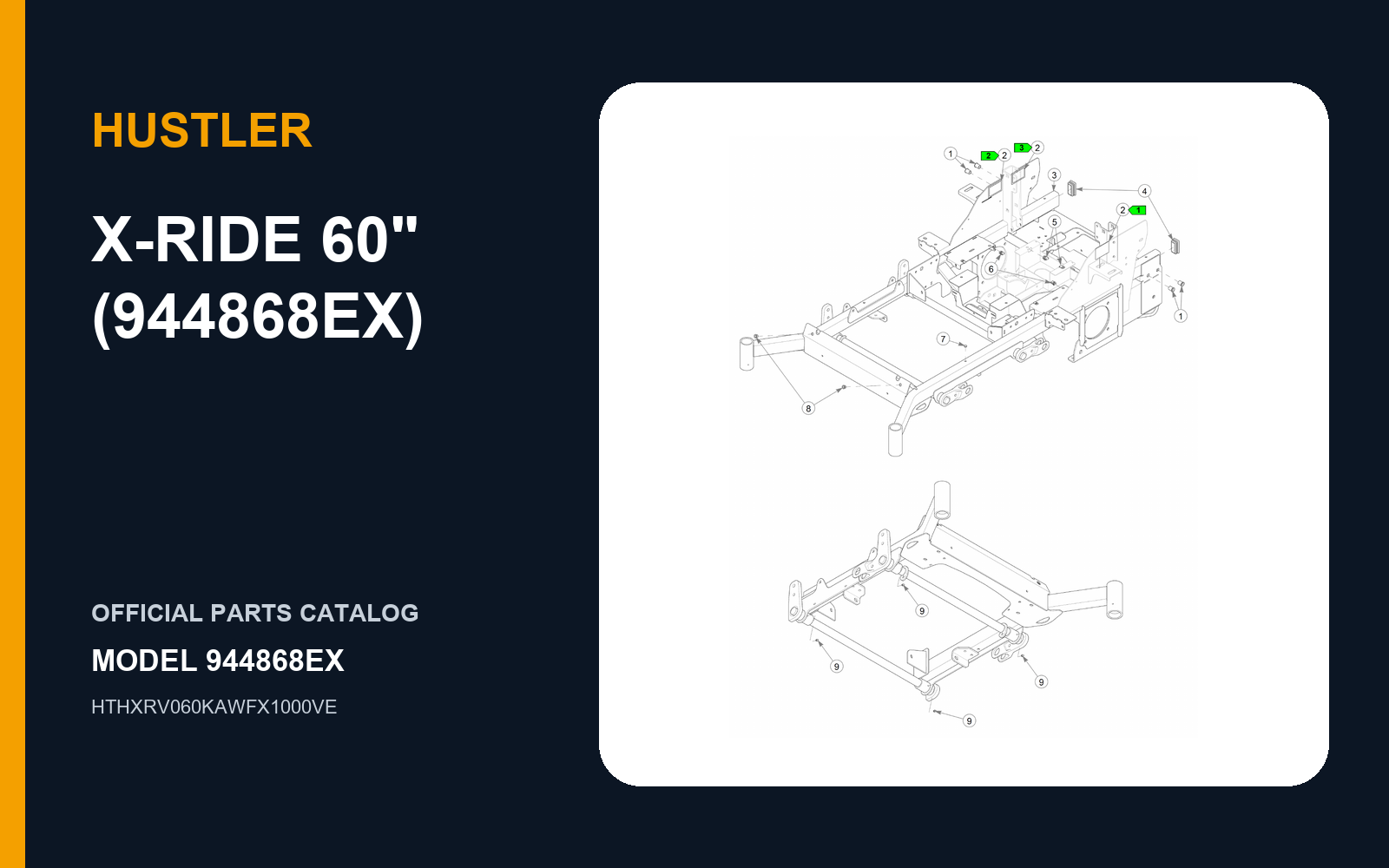

X-RIDE 60" (944868EX)

Commercial zero-turn / Kawasaki FX1000V / 60" fabricated deck

Model number
944868EX
Product code
HTHXRV060KAWFX1000VE
Transmission
Hydro-Gear ZT-5400
Manual coverage
26 systems / 524 parts

Dimensions & weight

X-RIDE · 60-inch side discharge · Published series specifications

Overall length
87 in
Width · chute up
61 in
Height · with ROPS raised
74 in
Published weight
1,570 lb

US series/deck reference. Confirm the regional model’s dimensions and weight before checking fit. Catcher dimensions are not provided in the source.

Configurations & source

The manufacturer also lists a height of 45 in, without explicitly identifying the folded-ROPS position. Confirm folded height separately.

Chute-down width is not verified. The cutting width is not the overall mower width.

Specifications can vary by year, engine and accessories. Confirm the actual configuration and tight clearances before transport.

Hustler manufacturer specifications ↗Reviewed September 10, 2026
View source manual
Super Z RD 60" (944421CE)
New Documoto manual added

Super Z RD 60" (944421CE)

Commercial rear-discharge zero-turn / Kawasaki FX820V EFI / EVO / 60" rear discharge fabricated deck

Model number
944421CE
Product code
HTHSZR060KAWFX820VEFIC
Transmission
Hydro-Gear PY pumps / Parker TG wheel motors
Manual coverage
36 systems / 557 parts

Dimensions & weight

Super Z · 60-inch rear discharge · Published series specifications

Overall length
90 in
Width · rear discharge
Needs confirmation
Height · with ROPS raised
73.5 in
Published weight
1,664 lb

The source does not separately identify the 60-inch rear-discharge width. Confirm the regional model’s dimensions and weight before checking fit.

Configurations & source

The manufacturer also lists a height of 47.8 in, without explicitly identifying the folded-ROPS position. Confirm folded height separately.

Specifications can vary by year, engine and accessories. Confirm the actual configuration and tight clearances before transport.

Hustler manufacturer specifications ↗Reviewed September 10, 2026
View source manual
Super Z HyperDrive RD 72" (944371EX)
New Documoto manual added

Super Z HyperDrive RD 72" (944371EX)

HyperDrive rear-discharge commercial zero-turn / Kawasaki FX1000V / 72" rear discharge fabricated deck

Model number
944371EX
Product code
HTSHDR072KAWFX1000VE
Transmission
Danfoss DDC-20 / Parker TG wheel motors
Manual coverage
33 systems / 556 parts

Dimensions & weight

Super Z HyperDrive · 72-inch rear discharge · Published series specifications

Overall length
92 in
Width · rear discharge
73.3 in
Height · with ROPS raised
73.5 in
Published weight
1,794 lb

US series/deck reference. Confirm the regional model’s dimensions and weight before checking fit.

Configurations & source

The manufacturer also lists a height of 47.8 in, without explicitly identifying the folded-ROPS position. Confirm folded height separately.

Specifications can vary by year, engine and accessories. Confirm the actual configuration and tight clearances before transport.

Hustler manufacturer specifications ↗Reviewed September 10, 2026
View source manual
Super Z HyperDrive RD 60" (944363EX)
New Documoto manual added

Super Z HyperDrive RD 60" (944363EX)

HyperDrive rear-discharge commercial zero-turn / Kawasaki FX1000V / 60" rear discharge fabricated deck

Model number
944363EX
Product code
HTSHDR060KAWFX1000VE
Transmission
Danfoss DDC-20 / Parker TG wheel motors
Manual coverage
33 systems / 555 parts

Dimensions & weight

Super Z HyperDrive · 60-inch rear discharge · Published series specifications

Overall length
90 in
Width · rear discharge
64 in
Height · with ROPS raised
73.5 in
Published weight
1,727 lb

US series/deck reference. Confirm the regional model’s dimensions and weight before checking fit.

Configurations & source

The manufacturer also lists a height of 47.8 in, without explicitly identifying the folded-ROPS position. Confirm folded height separately.

Specifications can vary by year, engine and accessories. Confirm the actual configuration and tight clearances before transport.

Hustler manufacturer specifications ↗Reviewed September 10, 2026
View source manual
Cook's Power EquipmentCPE Dealer PortalModel diagrams and account ordering for dealerships
CPE Dealer PortalCook's Power customer support

Exact-fit parts resources and secure customer account access from Cook's Power Equipment.

Cook's Power parts desk

Let's find the right part.

Tell us what you need. Your current mower and search details are ready to share.

Included with your question
Mower: Not selected yet

Not sure which mower? Add its model or serial number to your question if you have it.

Open email draft

Opens your email app with your question and equipment details addressed to parts@cookspower.com. Review the draft, then send it from your email app.

Call (352) 366-1929
